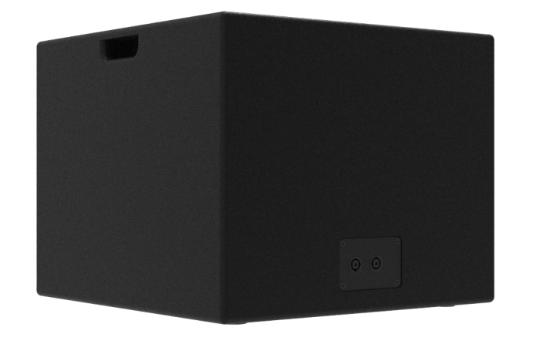

Moose ib15 - 15" passive bass-reflex Installation Subwoofer
MOO-IB15
Bass reflex installation subwoofer
Available in passive/active versions
1x 15" (4in VC) LF EU transducer
1000W AES / 1400W Program power
2x NL4 connectors in parallel
Versatile, compact to permit unobtrusive placement
2 recessed handles on top
Rugged and durable 15mm birch plywood construction
Powder coated custom perforated steel grille
2 en stock
Acoustical
Type
Enclosure design
Power rating (RMS/Program)
Frequency range
Nominal impedance
Transducer type
Crossover frequency
SPL (1W/1kHz)
Connector
Compact passive subwoofer
Bass reflex
1000W / 1400W
38 - 160Hz (-10dB)
8 ohm
1x 15" LF (4in VC) EU transducer
N/A
136dB @ 1m (peak)
2x NL4 in parallel
PROUDLY DEVELOPED AND
MANUFACTURED IN PORTUGAL
Mechanical
Enclosure
Grille
Color
Hardware
Dimensions
Weight
15mm birch plywood, rugged polyurea coating
Custom perforated metal grilles w/ acoustic foam
Black or white textured
4 rubber feet
Wallmount brackets (optional)
530x550x430mm | 20.87x21.65x16.93in
29Kg | 63.93lb
